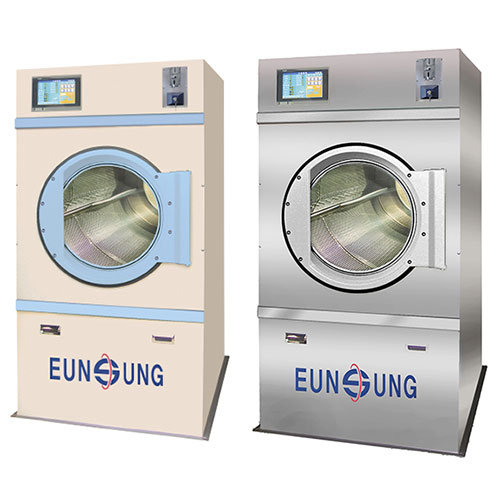

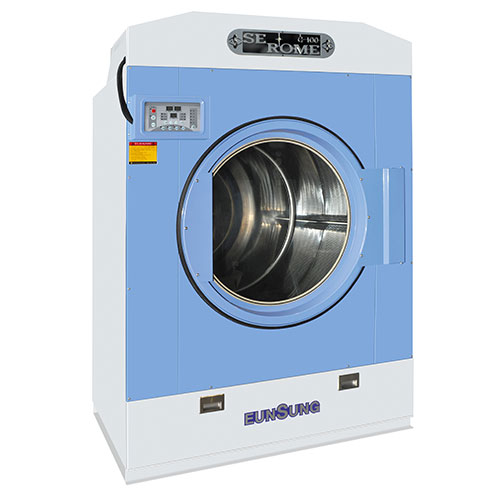

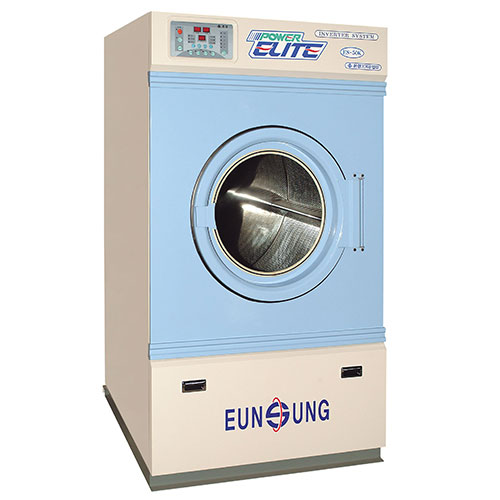

Large-size Dryer
Characteristic
- Between baskets and other construction methods 8 to 10 Ø and the other space spacing is 2 mm, the most other construction method in domestic launched products, many products, the seamless wind exhaustion from large exhaust air drying time shortening
- Noise reduction on a perfect dustproof system
- Internal Strainer function of steam trap prevents clogging
- By driving single-phase electric motor Motor, error prevention due to powerful rotation (15k - 20k)
- Large tea pipes Erotic pin insertion minimizes calories Also demonstrates maximum effect
- Two types of steam & electric heater system can be selected
- Because it can be manufactured in prefabricated according to site conditions, it can be installed in a small space
- Small dust particles can be filtered through a dry net
- Can be used in both automatic mode and manual mode for all processes
- Prevent washing damage by preventing twist of washing with left and right energetic rotation
- Built-in overheat prevention function (safety function)
- Automobile single function (safety function) when an error occurs
- Fan Motor Simultaneous automatic cut-off function for force function (safety function)
Specification
| Model | Basket standard(mm) Diameter x Depth |
Capacity (kg,L) |
Weight (㎏) |
Motor Capacity | Electronic Heater Capacity(Kw/h) Three phase 380V (4P) |
Dimensions(m/m) | |||
|---|---|---|---|---|---|---|---|---|---|
| Cylinder | Fan | Length(L) | Width(W) | Height(H) | |||||
| SR-7615 | 800 X 580 | 15Kg | 224Kg | 1/2hp/6p | 1/2hp/4p | 12Kw | 850 | 850 | 1,630 |
| SR-7620 | 800 X 730 | 20Kg | 270Kg | 1/2hp/6p | 1/2hp/4p | 12Kw | 850 | 850 | 1,650 |
| SR-7625 | 915 X 750 | 25Kg | 360Kg | 1/2hp/6p | 1hp/4p | 18Kw | 970 | 1,250 | 1,800 |
| SR-7630 | 915 X 900 | 30Kg | 450Kg | 1/2hp/6p | 1hp/4p | 18Kw | 970 | 1,400 | 1,800 |
| SR-7650 | 1,100 X 1,100 | 50Kg | 580Kg | 1hp/6p | 2hp/4p | 27Kw | 1,150 | 1,530 | 2,000 |
| SR-7680 | 1,300 X 1,100 | 80Kg | 900Kg | 2hp/6p | 2hp/4p | 33Kw | 1,350 | 1,530 | 2,290 |
| SR-7700 | 1,600 X 1,000 | 100Kg | 1.118Kg | 3hp/6p | 3hp/4p | 45Kw | 1,780 | 1,850 | 2,400 |
| SR-8150 | 1,600 X 1,200 | 150Kg | 1.300Kg | 5hp/6p | 5hp/4p | 50Kw | 1,780 | 2,090 | 2,400 |
