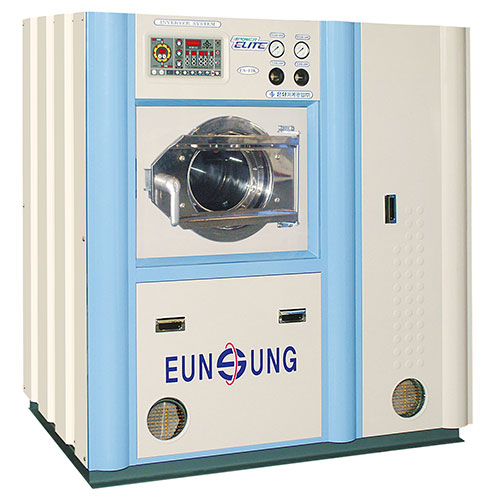

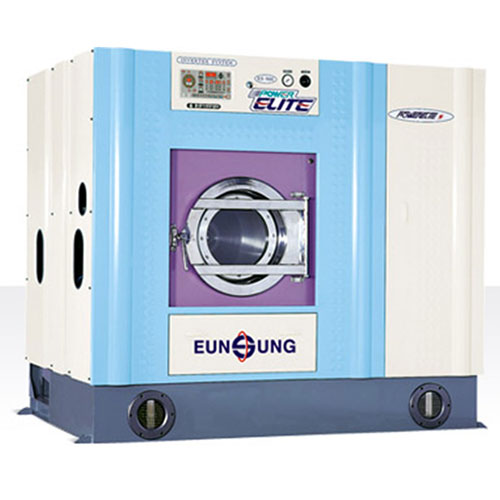

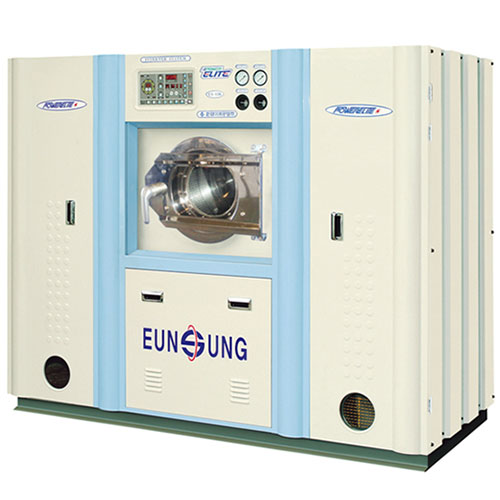

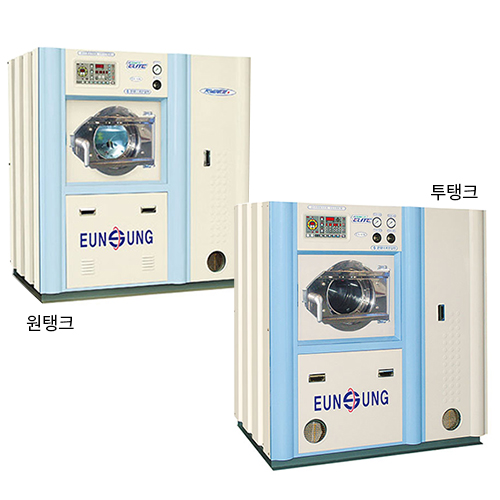

ELITE(one,two tank)
Characteristic
- Fully automatic inverter control system, various washing possibilities
- Engineering structure utilizing the center of gravity for adjusting vibration absorption of shovel and spring
- Laundry of a new concept can be laundered (option with built-in injection washing course)
- Lifespan is worth by installing durable bearings
- No in-tank sludge No need for cleaning
- Excellent washing capacity with washing with power of powerful pump
- There is no oil mixing phenomenon in the oil drain in the oil tank (3 way cylinder valve)
- Simple design and beautiful appearance
Specification
| Model | Basket standard(mm) Diameter x Depth | Capacity (kg,L) |
Weight (㎏) |
Number of basket spin | Power consumption of motor |
Dimensions(m/m) | |||
|---|---|---|---|---|---|---|---|---|---|
| Wash | Dehydration | Length(L) | Width(W) | Height(H) | |||||
| ESE-7313 | 660 X 370 | 13Kg (126ℓ) | 670Kg | 45 | 850 | 2hp(1.5kw) | 1,540 | 1,000 | 1,630 |
| ESE-7317 | 720 X 420 | 17Kg (171ℓ) | 790Kg | 45 | 800 | 2hp(1.5kw) | 1,640 | 1,050 | 1,670 |
| ESE-7323 | 800 X 470 | 23Kg (236ℓ) | 900Kg | 45 | 750 | 3hp(2.2kw) | 1,640 | 1,100 | 1,670 |
| ESE-7330 | 830 X 580 | 30Kg (323ℓ) | 1,200Kg | 42 | 700 | 5hp(5.5kw) | 1,800 | 1,300 | 1,800 |
| ESE-7350 | 1000 X 600 | 50Kg (455ℓ) | 1,800Kg | 38 | 650 | 10hp(7.5kw) | 2,000 | 1,550 | 2,000 |
