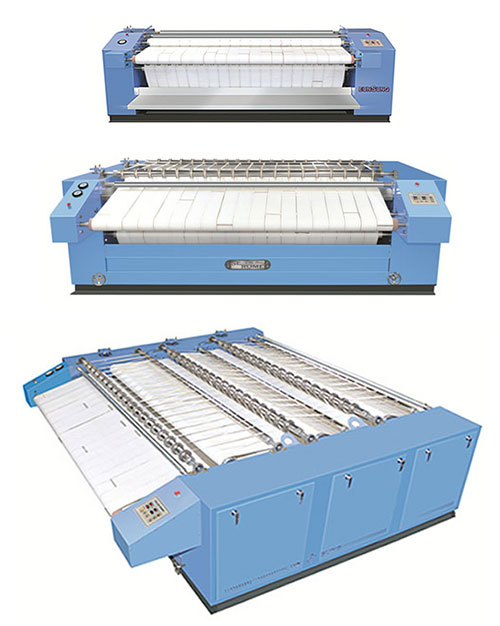

Roller Ironer
Characteristic
- Secure the technical capability only in the domestic patent holding / Eunsung engineering
- Korea's largest efficiency using guides (90%)
- Maximum throughput per hour

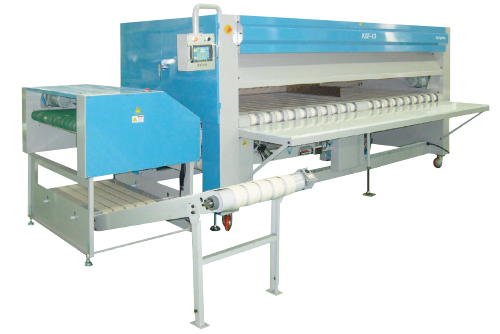

- Free linkage with Folder & Stacker
- Made with the material of the roller pipe sus 304
- Free operation demo for inverter control system adoption
- Equipped with a simple design and harmonious color feeling even more dignified equipment
- Glue on sheets and easy to discharge when static electricity is generated
Specification
| Model | Roller standard(mm) Diameter x Depth | Steam | Weight (㎏) |
Throughput(EA//hr) | Power consumption(HP) | Dimensions(m/m) | |||
|---|---|---|---|---|---|---|---|---|---|
| Pressure | Consumption | Length(L) | Width(W) | Height(H) | |||||
| ESE - 9010 | 600Ø X 1ROLL | 7 | 150 | 1,500Kg | 120-150 | 2hp/4P | 4,200 | 1,400 | 1,250 |
| ESE - 9020 | 600Ø X 2ROLL | 7 | 280 | 2,200Kg | 300-400 | 3hp/4P | 4,200 | 2,550 | 1,250 |
| ESE - 9030 | 800Ø X 1ROLL | 7 | 180 | 1,800Kg | 250-300 | 2hp/4P | 4,200 | 1,600 | 1,350 |
| ESE - 9040 | 800Ø X 2ROLL | 7 | 340 | 2,500Kg | 400-450 | 3hp/4P | 4,200 | 3,050 | 1,350 |
| ESE - 9050 | 800Ø X 3ROLL | 7 | 500 | 3,000Kg | 440-500 | 3hp/4P | 4,200 | 4,050 | 1,350 |
| ESE - 9060 | 1,000Ø X 1ROLL | 7 | 200 | 2,000Kg | 300-350 | 3hp/4P | 4,200 | 2,400 | 1,600 |
| ESE - 9070 | 1,000Ø X 2ROLL | 7 | 350 | 2,900Kg | 450-500 | 5hp/4P | 4,200 | 3,530 | 1,600 |
| ESE - 9080 | 1,000Ø X 3ROLL | 7 | 600 | 3,700Kg | 500-600 | 7.5hp/4P | 4,200 | 4,730 | 1,600 |
Video
